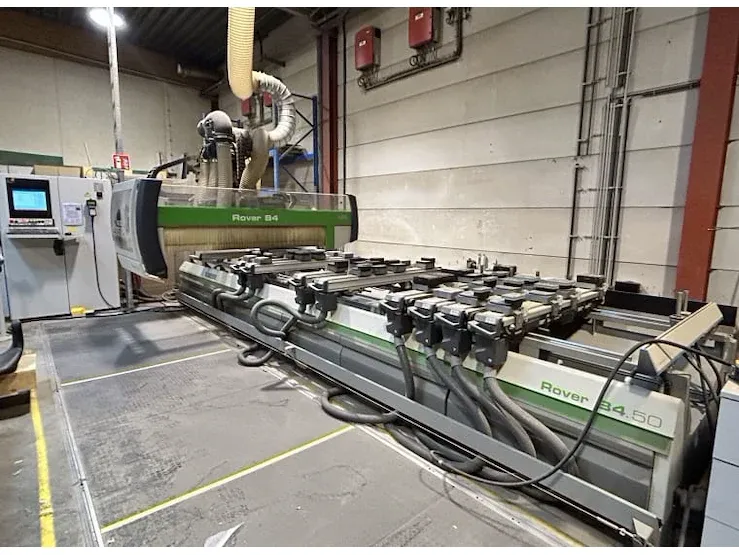

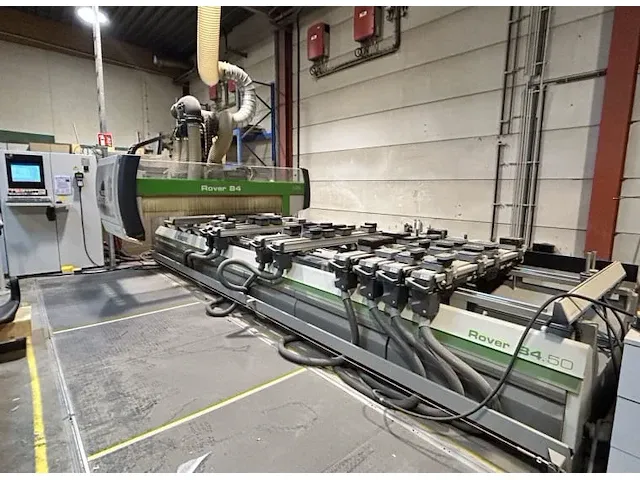

Cnc-bewerkingscentrum (hout) biesse rover b50

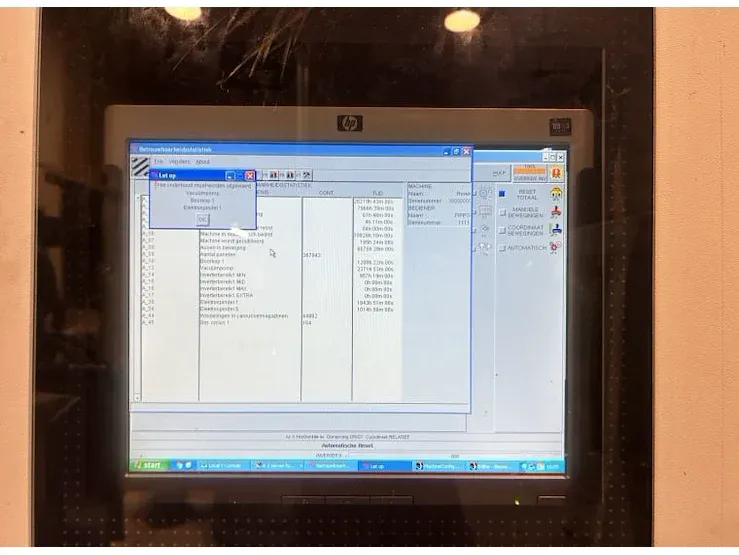

Machine Specifications: Model: BIESSE ROVER B 4.50 Year of Manufacture: 2006 Operating System: BiesseWorks on Windows XP Number of Axes: 3 X-axis: 5220 mm Y-axis: 1750 mm Z-axis: 225 mm Spindles: 1 Main Motor Power: 12 kW Maximum RPM: 18000 Work Area: Effective Work Area: 6m x 1.3m Workpiece Depth: Adjustable (slightly larger than the nominal depth) Tooling: ISO30 Tool Holder Toolholder Included (Tools not included) Variety of toolholders, including saw aggregate for X, Y, or 45° cuts Tool Magazine: Capacity: 12 positions Table Configuration: 8 Tables 4 Vacuum Blocks per Table Additional Features: Serial Number: 71035 3-Axis Machining Year of Construction: 2006 Air Supply: 7 Bar Mass: 5700 kg Power Supply Voltage: 380 VAC Rated Current: 38 A Number of Power Supply Phases: 3 Power Consumption: 21.1 kW Frequency: 50 Hz BiesseWorks Software Operating Hours: 28219 h Machine Hours with Axis Movement: 6575 h Damage: Inverter needs to be replaced (Inverter AS1U1 Model SE43401100 SE 16T 11KW) Vertaling tonen Automatische vertaling instelmaat ca. (l x b x h) 7,000 x 3,000 x 2,000 mm gewicht ca. 5,700 kg
