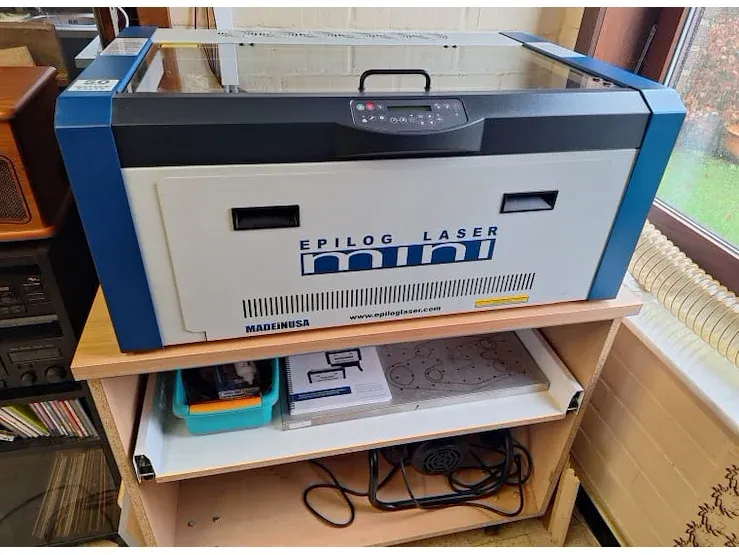

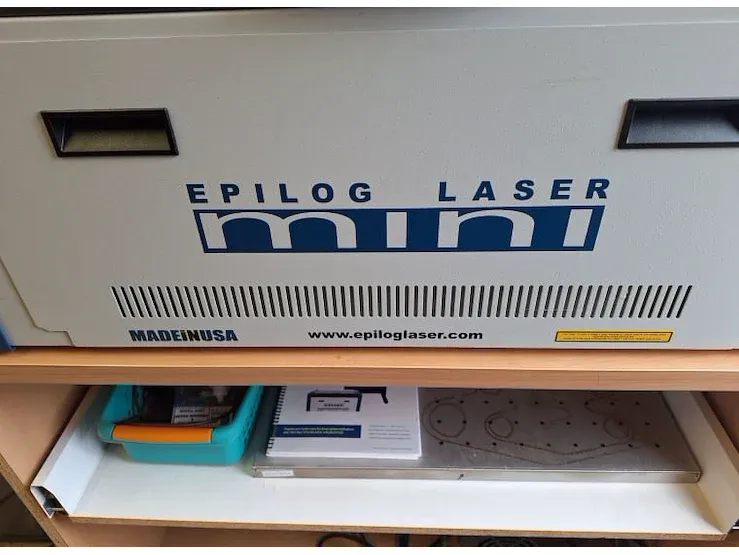

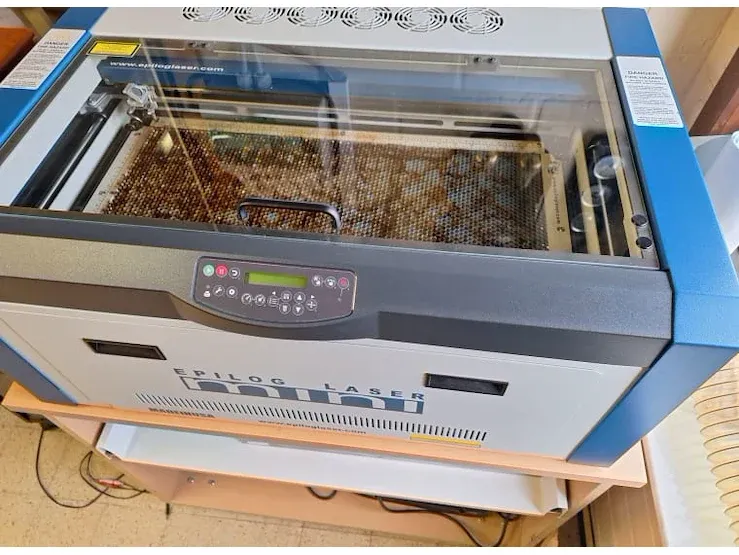

Laser-snijmachine epilog mini 54

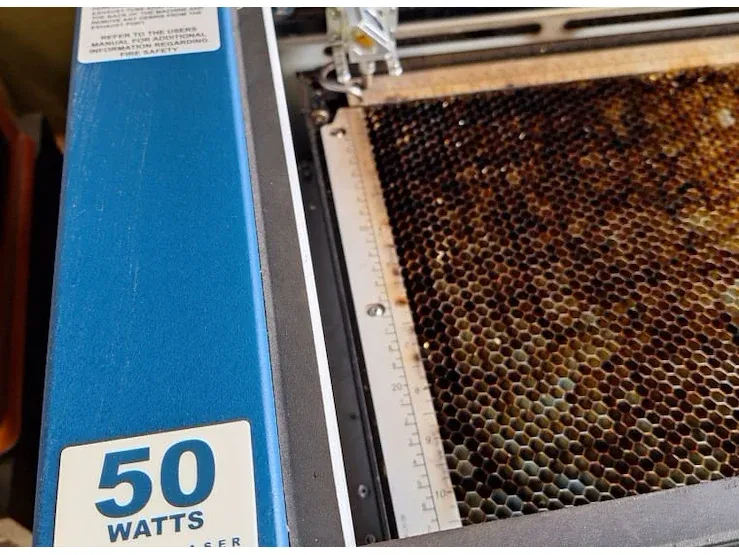

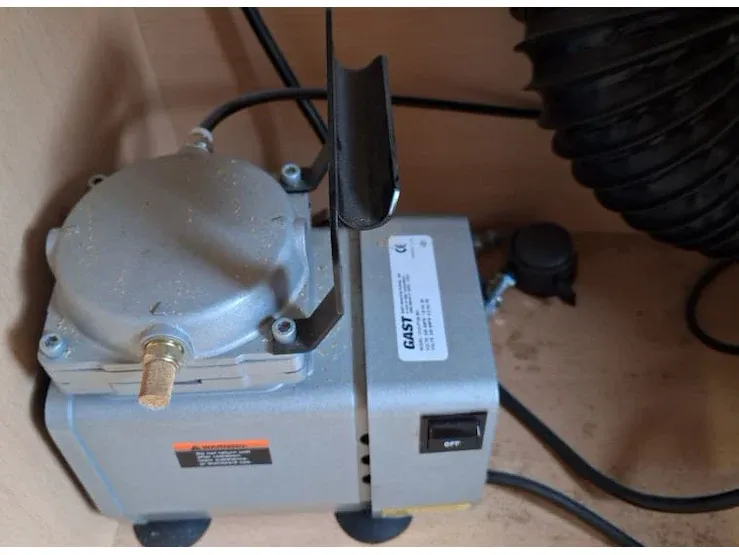

Max Engraving Area: 610 x 305 mm Max Material Thickness: 1400 mm (removable table for 203 mm depth and 597 x 298 mm engraving area) Laser Source Wattages: 50 Watt Co2 air-cooled, all metal tube, 1062 mm Standard Features: Air assist, auto focus, red dot pointer, integrated vector grid and vacuum table, 51 mm focus lens, reloctacle home position, permanent job save with 10 2mb files, easy access drop-down-door, super-silent cooling fans Intelligent Memory Buffer: Store multiple files up to 64 MB, rolling buffer allows files of any size Operating Modes: Optimized raster, vector, and combined modes Motion Control System: High-speed, continuous-loop, DC servo motor using linear motor and rotary encoding technology for precise positioning X-axis Bearings: Ground and polished, stainless steel, long-lasting bearings Belts: Advanced B-style double wide Kevlar belts Resolution: User-controlled from 75 to 1200 dpi Speed and Power Control: Computer-controlled speed and power in 1% increments to 100%. Color mapping links speed, power, frequency, and raster/vector mode setting to any RGB color Print Interface: 10 base-T Ethernet or USB connection. Compatible with Windows XP/Vista/7/8/10 Electrical Requirements: Auto-switching 110 to 240 Volts, 50 or 60 Hz, single phase, 15 amp AC Laser System Classification: Class 2 Laser product, 1 mW CW maximum 600-700 mm Vertaling tonen Automatische vertaling tafellengte 876 x 660 x 406 mm tafelbreedte 600 mm lasercapaciteit 50 kW gewicht ca. 55 kg instelmaat ca. (l x b x h) 1,020 x 650 x 630 mm
