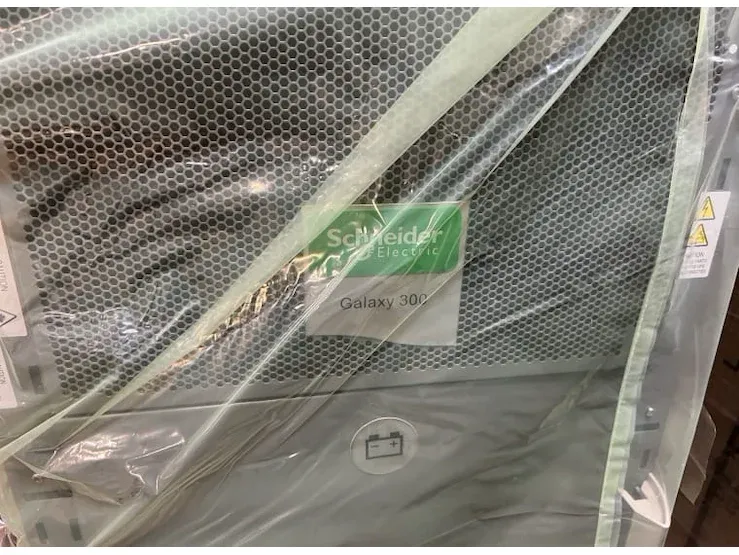

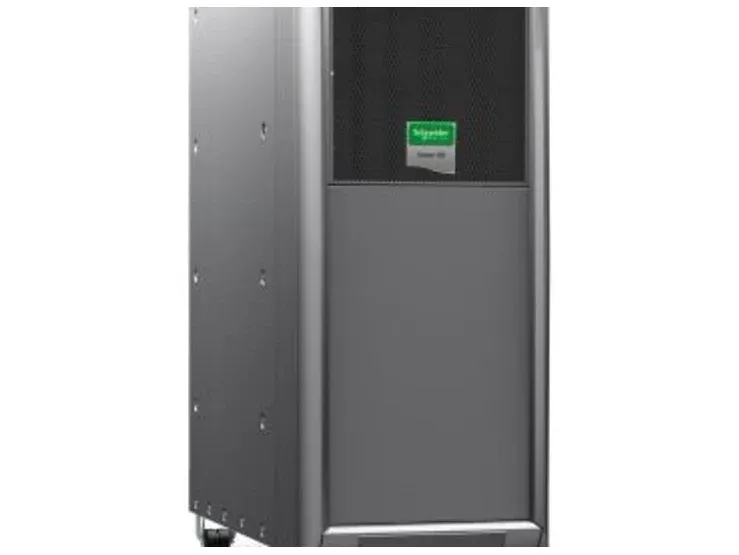

Meer it-uitrusting schneider electric 30 kva mge galaxy 300

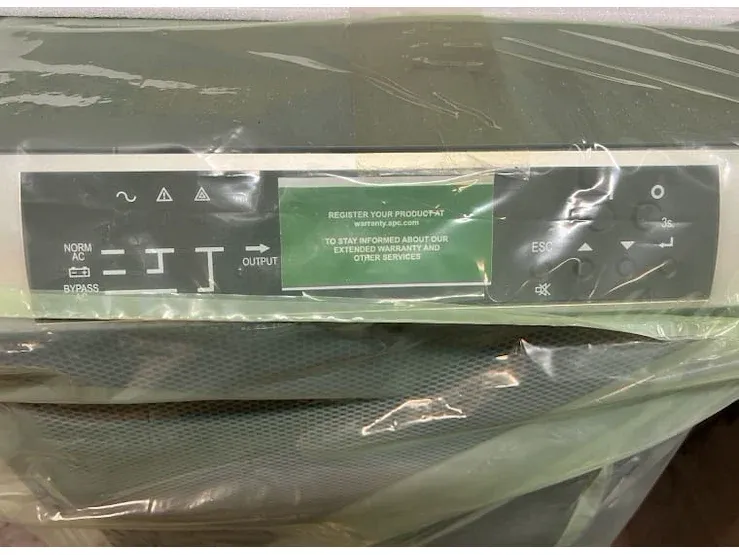

Max Configurable Power (Watts) 24.0kWatts / 30.0kVA Output Voltage Note Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage Output Voltage Distortion Less than 5 % Output Frequency (sync to mains) 50 Hz +/- 0.1 % For 50 Hz nominal Unsynchronised, 50/60 Hz +/- 5 % Sync to mains, 60 Hz +/- 0.1 % For 60 Hz nominal Unsynchronised Other Output Voltages 380 V, 415 V Waveform type Sine wave Overload Operation 60 seconds at 120% and 30 seconds at 145% Maximum Output Current 65 Output Voltage THD 3% linear load and 5% non-linear load Output Voltage Tolerance +/- 2% static and 100% load step INPUT Input frequency 45 - 65 Hz Input voltage range for main operations 323 - 437 (380 V) Adjustable, 340 - 460 (400 V) Adjustable, 340 - 477, 357 - 477 (415 V) AdjustableV Input Total Harmonic Distortion Less than 5 % for full load Other Input Voltages 380 V, 415 V Input Power Factor at Full Load 0.99 Batteries & Runtime Battery type Lead-acid battery Nominal Battery Voltage +/- 192 V (split battery referenced to neutral) Expected Battery Life (years) 3 - 5 End of Discharge Battery Voltage +/- 154 V Overload Operation 60 seconds at 120% and 30 seconds at 145% Control panel Multifunction LCD status and control console Emergency Power Off (EPO) Yes Environmental Operating Temperature 0 - 35 °C Operating Relative Humidity 0 - 95 % Operating Elevation 0 - 3048meters Storage Temperature -10 - 60 °C Storage Relative Humidity 0 - 95 % Storage Elevation 0 - 9144meters Protection Class IP20 Vertaling tonen Automatische vertaling instelmaat ca. (l x b x h) 1,300 x 500 x 950 mm gewicht ca. 600 kg
