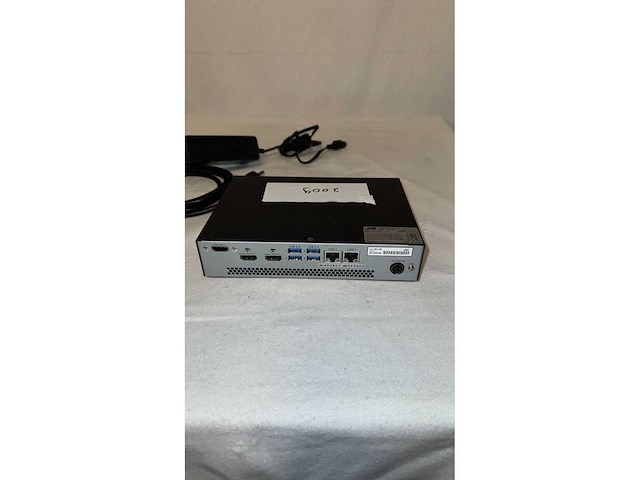

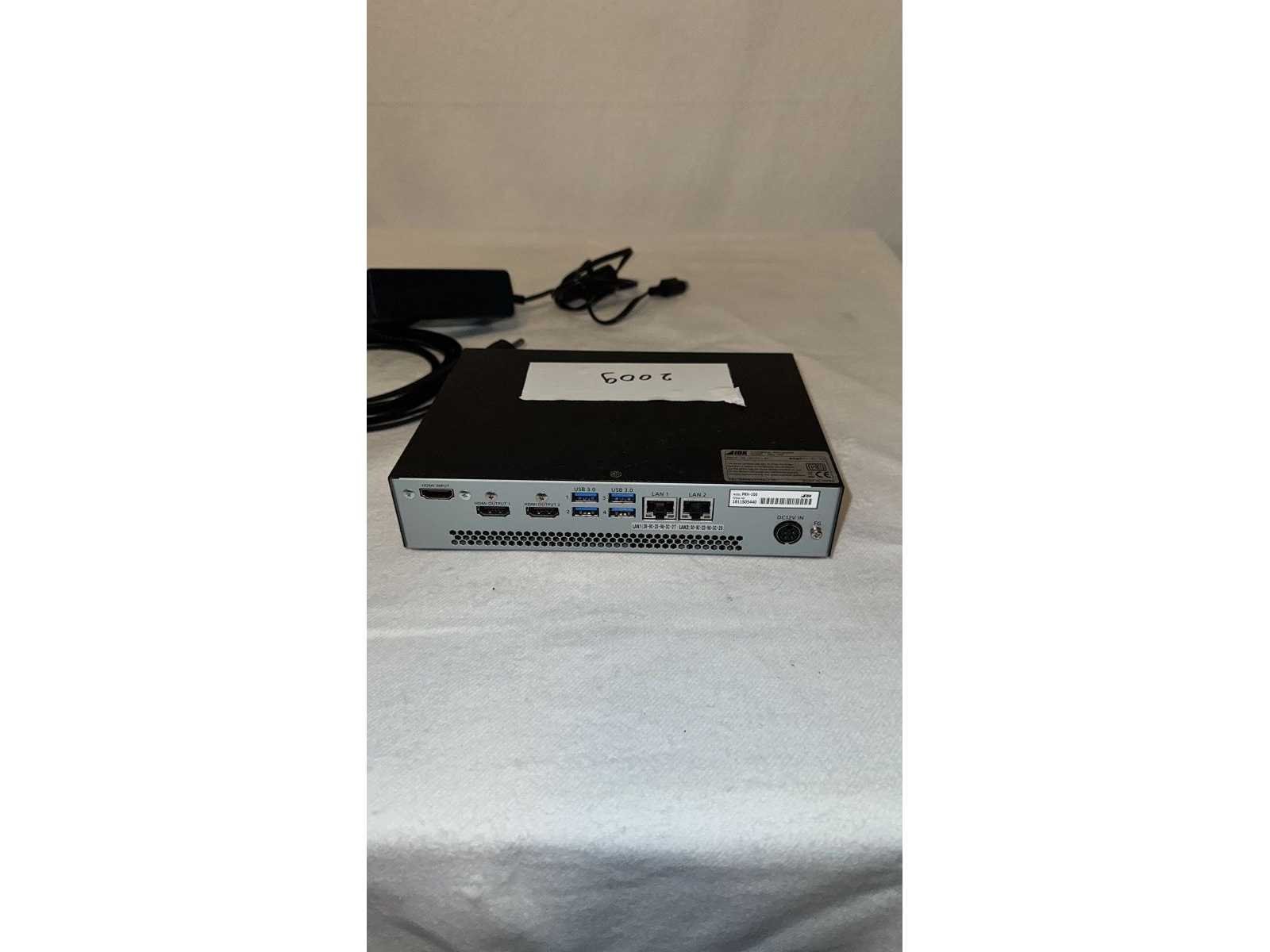

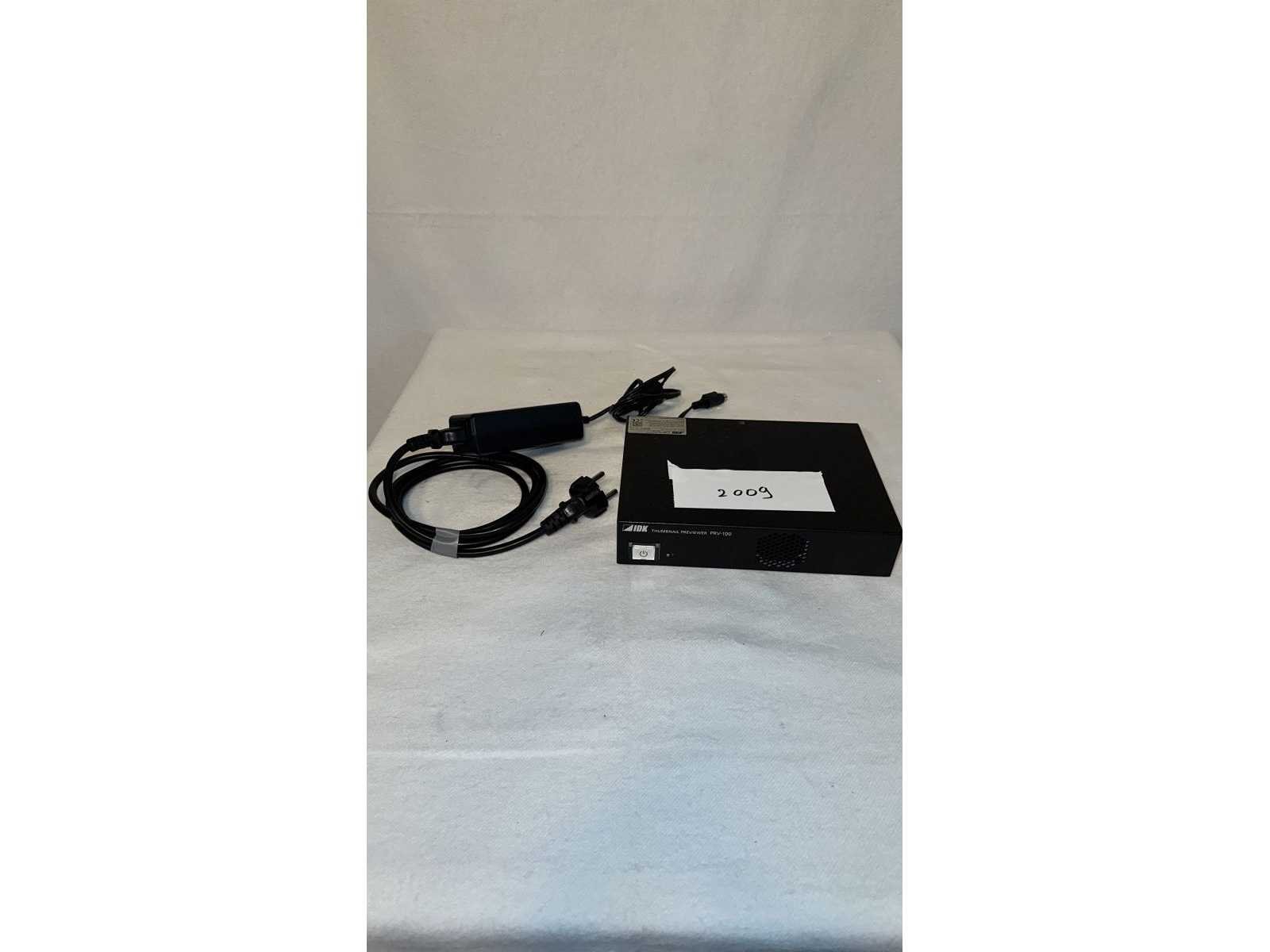

Idk - prv 100

Thumbnail Previewer PRV-100 Thumbnail previewing Register up to 128 layouts H.264 streaming output Input 1 Output 1 Video input Resolution Up to 1920x1080@60 Video output Resolution Up to 3840x2160@30 Protocol TCP/IP, UDP/IP, HTTP, ICMP, DHCP Connectors LAN 2 ports/RJ-45 10Base-T/100Base-TX/1000Base-T (Auto Negotiation), Auto MDI / MDI-X HDMI 1 input : Female HDMI Type A (19-pin) 2 outputs : Female HDMI Type A (19-pin) USB 3.0 4 ports: Female USB 3.0 Type A Functions Preview layout Up to 128 layouts can be registered Thumbnail capture Up to 100 images can be displayed Capture interval : 3 sec. to 600 sec. Capture format : .jpg Encode Communication : Unicast, Multicast Coding standard : H.264 BP/MP/HP Bit rate : 8 Mbps Frame rate : Up to 60 fps Resolution : Up to 1920x1080 General AC adapter Input : 100 - 240 VAC ±10%, 50 Hz/60 Hz ±3 Hz Output : DC 12 V 3 A 36.0 W (A dediAbout 18 Wcated AC adapter is provided) Power consumption About 18 W Dimensions 8.3 (W) × 1.7 (H) × 5.9 (D)” 210 (W) × 44 (H) × 150 (D) mm (EIA 1U high, full rack wide) (Excluding connectors and the like) Weight 3.3 lbs. (1.5 kg) Temperature Operating : 32°F to 104°F (0°C to +40°C) Storage : -4°F to +176°F (-20°C to +80°C) Humidity Operating/Storage: 20% to 90% (Non Condensing) IP-NINJAR THUMBNAIL PREVIEWER Merk: IDK
